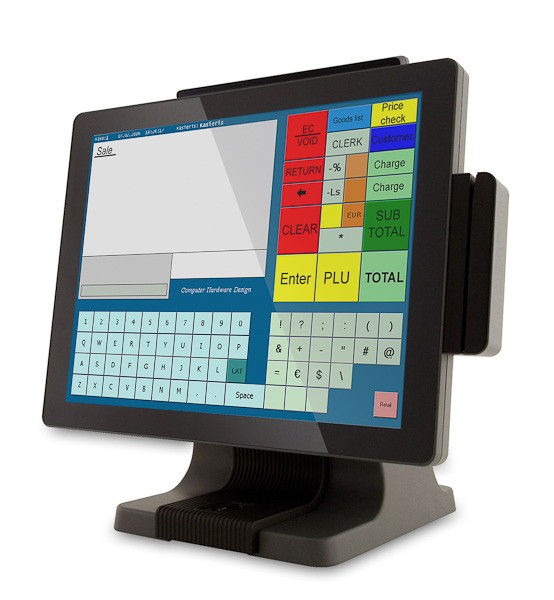

CHD 8700



Sistem Pos all in one de ultima generatie cu hard-disk ssd.

Mai multe detalii


Informatii produs


Specificatii



Sisteme de operare

Windows® Embedded POS Ready 2009 (INSTALAT)

Sisteme suportate

Vista®, Windows® XP Professional, Windows® XP Embedded,Windows® XP Professional for Embedded, WinCE, Windows® 7, Linux

Procesor

Intel® Pineview D525 1.8G L2 1M, duo core 13W (default)

Chipset

CPU with Graphic built-in + ICH 8M

RAM

2Gb, 2 x DDR3 DIMM up to 4GB FSB 800MHz

HDD

32 GB SSD

Graphical card

Intel® GMA 3150 share system memory up to 256MB

Afisor client

8.4” / 15” Second Display without touch(option)

Ports

4 x COM ports RJ-45 connectors (COM1/COM2 standard RS-232; COM3/COM4 pin 9 with +5V/+12V power)

USB

4, USB 2.0

Porturi paralele

1

Slots

1 x PCI-E Socket

LAN

1 x RJ-45 (10/100/1000Mbps Giga LAN)

Audio

1 x MIC-in, 1 x Line-out

MSR

+

Parametrii



Modular / one-piece

All in one

Display

15”

Audio

2 x 2W internal speaker (option)

Alimentare

Adapter (DC 90W, 19V, 4.7A)

Greutate

7 kg

Dimensiune

LCD 90° tilt angle: 361.4 x 248 x 337 mm

Temperatura de operare

5°C ~ 35°C

Umiditate

20% ~ 80% RH non-condensing

Display



Tip

15” TFT LCD

Touchscreen

+

Rezolutie

1024x768

Luminozitate

250 cd/m²
